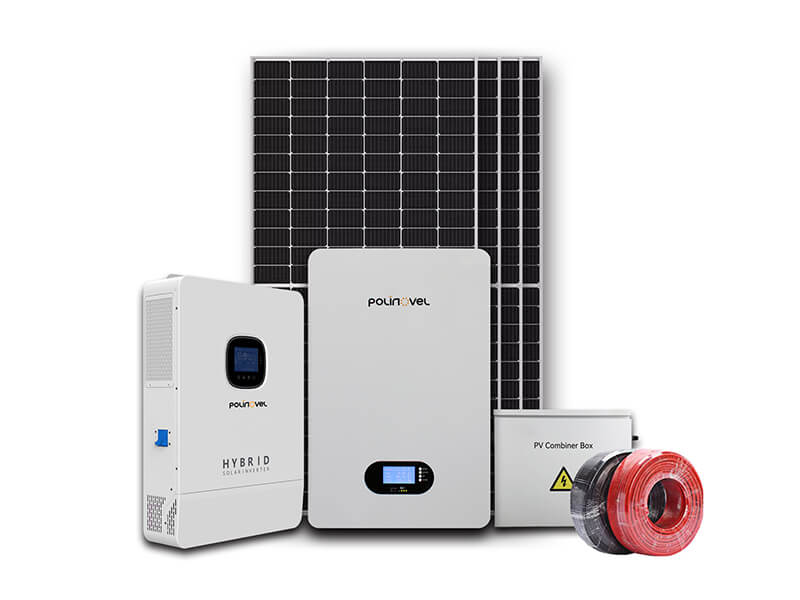

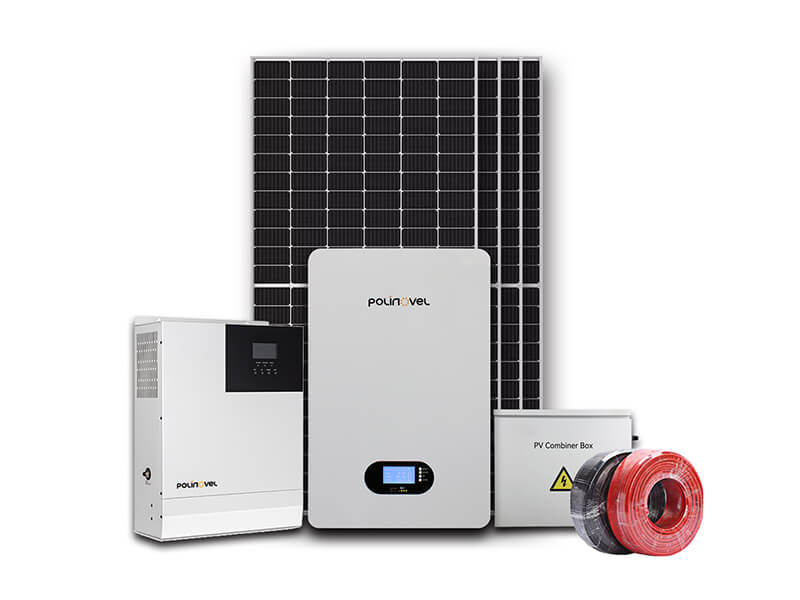

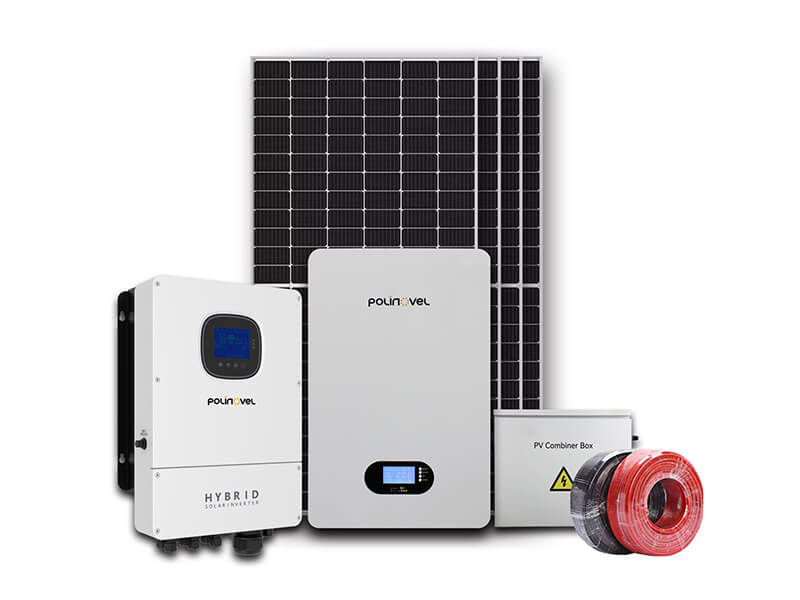

Solar Energy Storage System
Hybrid Solar Energy System is also named On&Off Grid Solar Energy System. It has the feature and functions of both on-grid and off-grid solar energy systems. If you have a hybrid solar energy system, you could use the electricity stored in the battery bank to power your home when the sun is not shining, such as at night, on cloudy days, or during a blackout.
Features
-
Half Cell Solar Panel: Great durability against extreme condition
-
Hybrid Solar Inverter: Outputs high quality pure sine wave AC power
-
Lithium Battery: Up to 15 units in parallel
-
Mounting Bracket: Roof and ground solar mounting system
Product Details
| Item | 3KW+5KWh | 5KW+5KWh | 8KW+10KWh | 10KW+10KWh |
| Half Cell Solar Panel | 450W Mono * 8pcs | 450W Mono * 12pcs | 450W Mono * 16pcs | 450W Mono * 22pcs |
| Hybrid Inverter | 3KW | 5KW | 8KW | 10KW |
| Lithium Battery | 5KWh Lifepo4 Battery (WALL5) | 5KWh Lifepo4 Battery (WALL5) | 10KWh Lifepo4 Battery (WALL10) | 10KWh Lifepo4 Battery (WALL10) |
| PV Combiner Box | 1pc | 1pc | 1pc | 1pc |
| PV Cable | 4-6mm2 | 4-6mm2 | 4-6mm2 | 4-6mm2 |
| Mounting Bracket | Roof/Ground | Roof/Ground | Roof/Ground | Roof/Ground |
| MC4 Connector | 8pcs | 12pcs | 16pcs | 22pcs |
| Installation Tools | 1set | 1set | 1set | 1set |
Wide Range Of Applications
