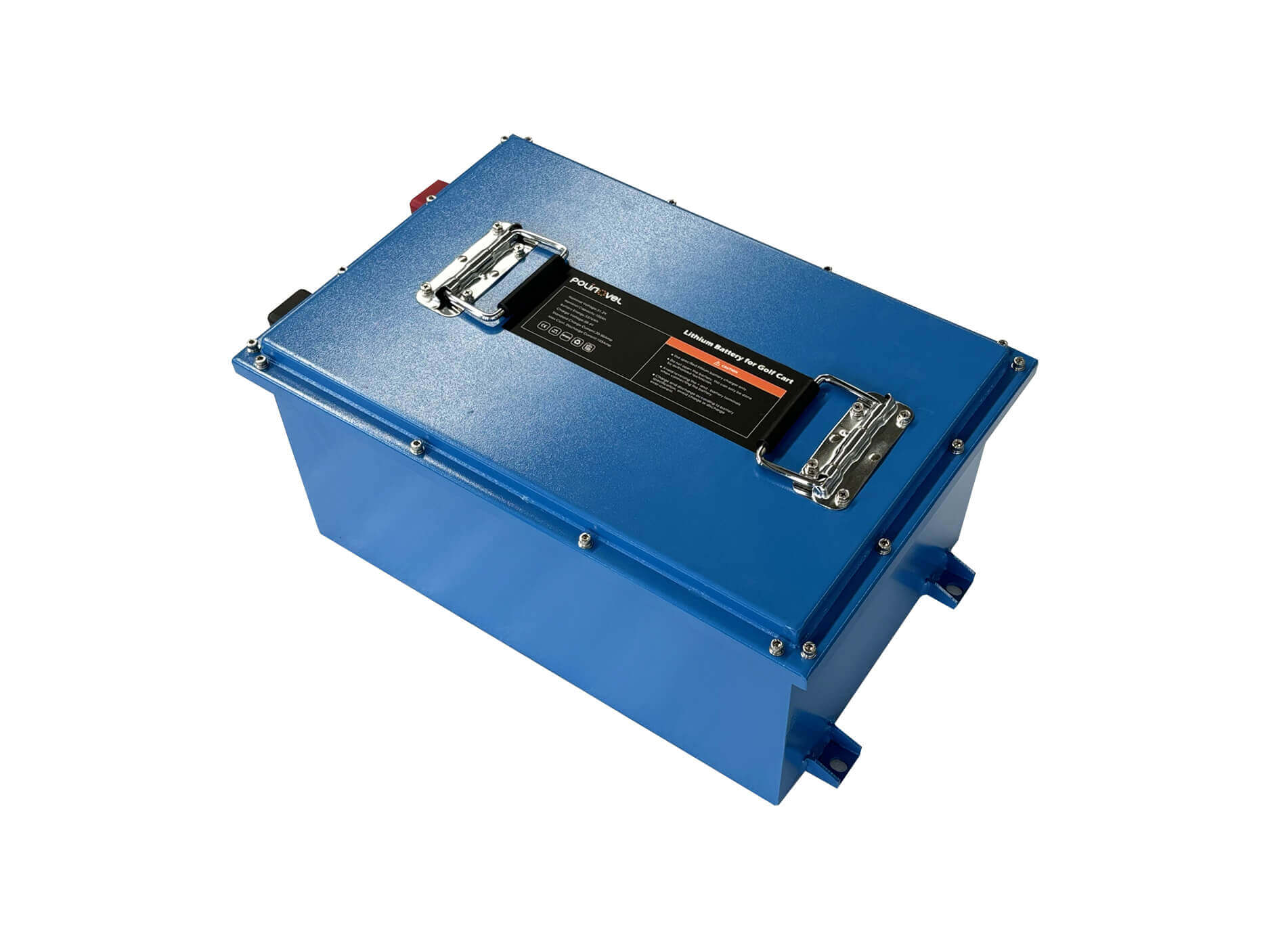

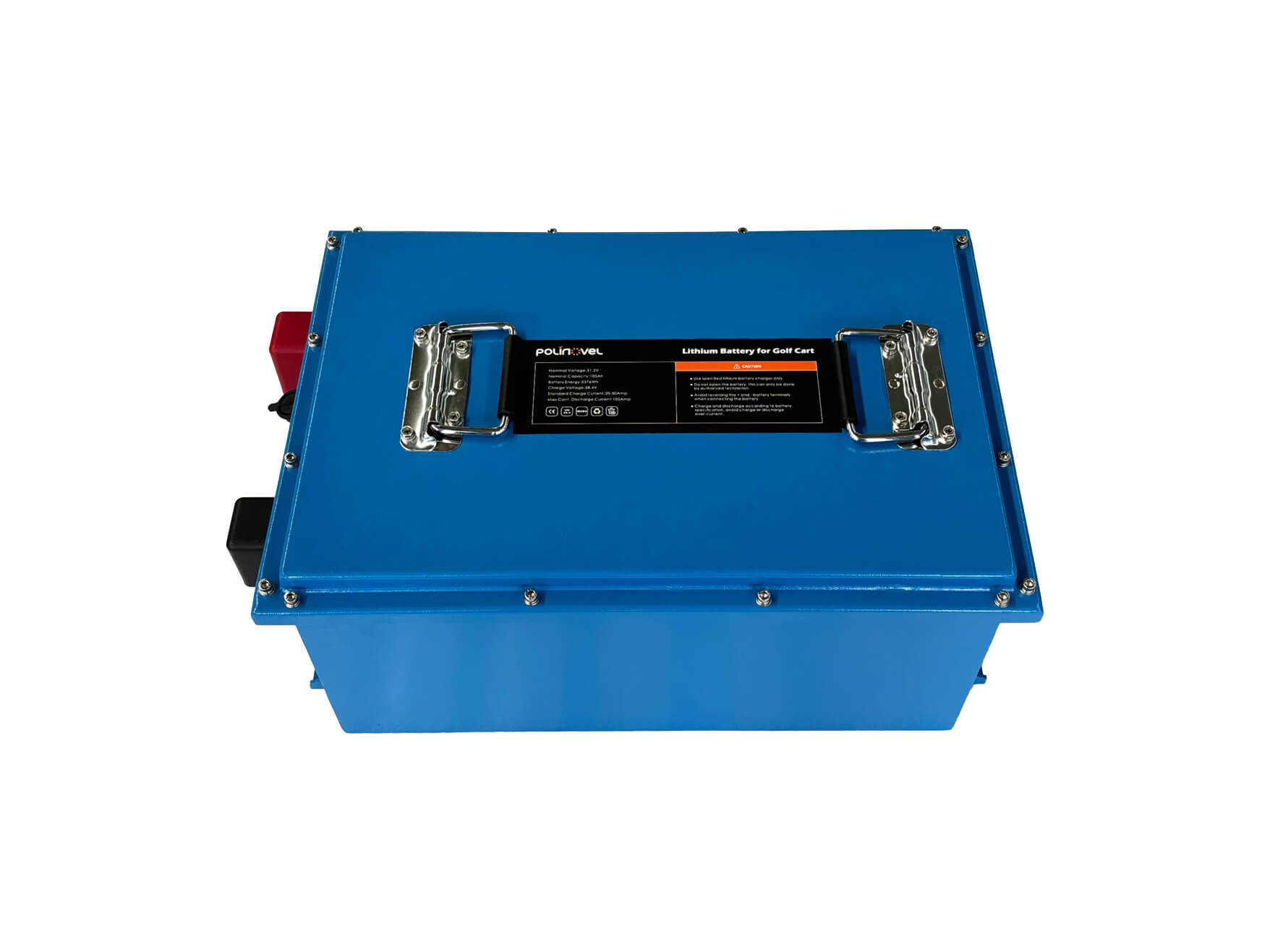

Mini Type 51.2V 105Ah Lithium Traction Battery
Polinovel Golf Series lithium batteries are great drop-in replacement for lead acid batteries. No space modifications or extra components are required, making the retrofit a breeze.
Features
-
Lithium iron phosphate battery delivers high-quality performance
-
Robust BMS prevents over/under voltage, current, and temperature
-
Customize battery with drop-in replacement size for easy installation
-

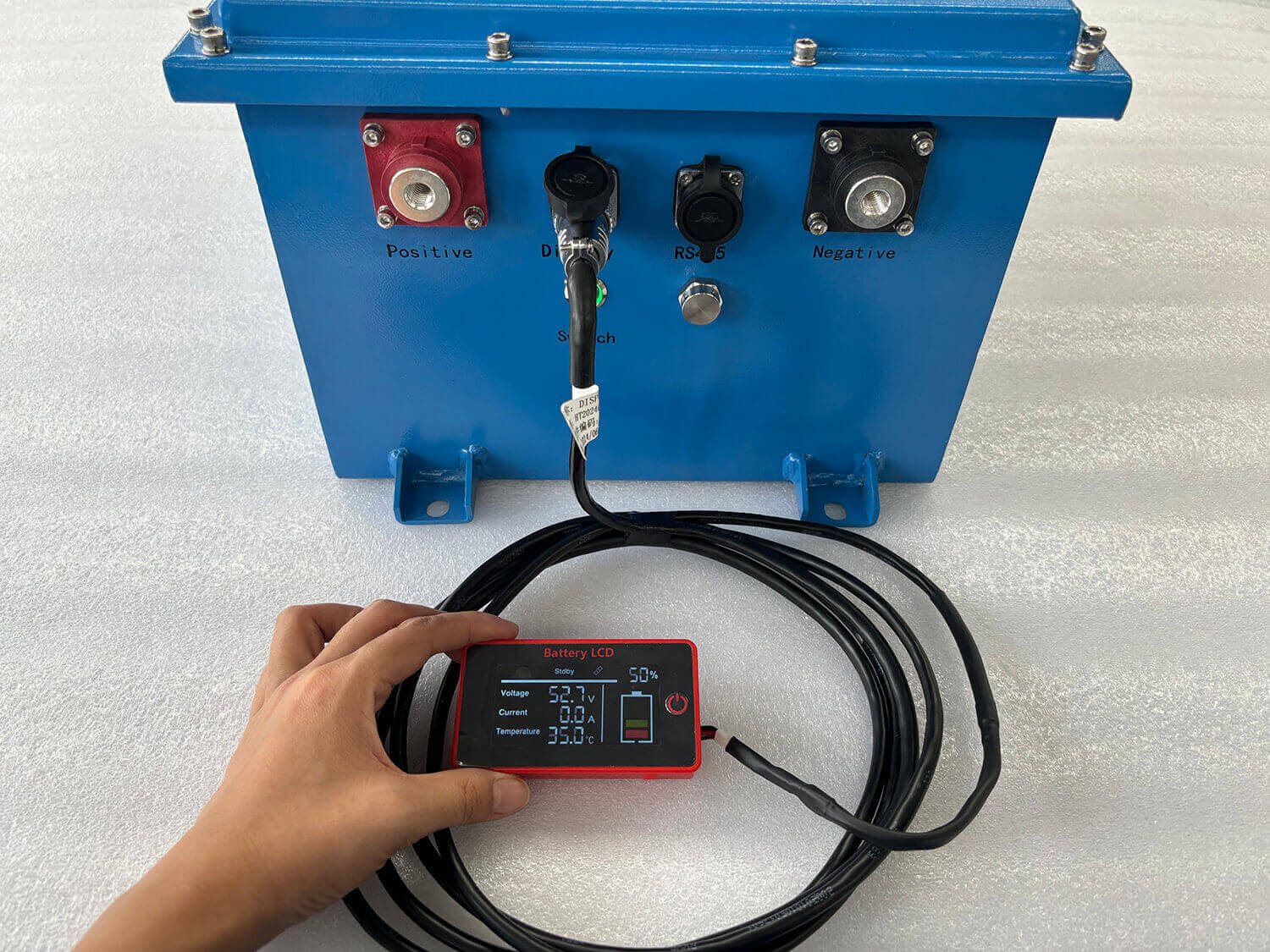

Plug-and-play fuel gauge provides real-time state of charge (SOC)
Product Details
| Model | GOLF51105Mini |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 105Ah |
| Energy | 5376Wh |
| Standard Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 44V |
| Standard Charge Current | 30A |
| Max. Constant Discharge Current | 105A |
| Peak Discharge Current | 160A @2min; 420A @2s |
| Dimension | 464*334*243 mm (18.3*13.1*9.6 in) |
| Weight | 45kg (99 lbs) |
| Cycle Life | >2500 (1C@ DOD100%); >4000 (0.2C@ DOD100%) |
| Charge Temperature | 0 to 60ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature | 10 to 45ºC |
Wide Range Of Applications
