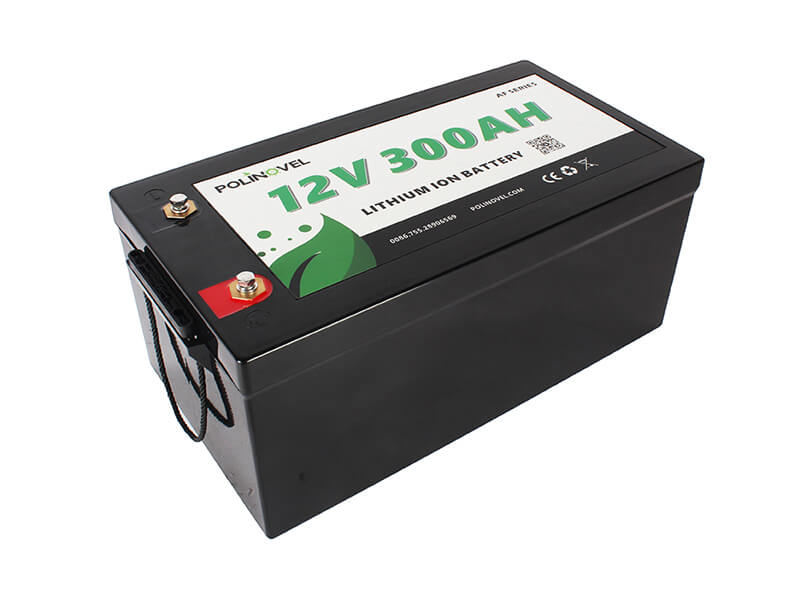

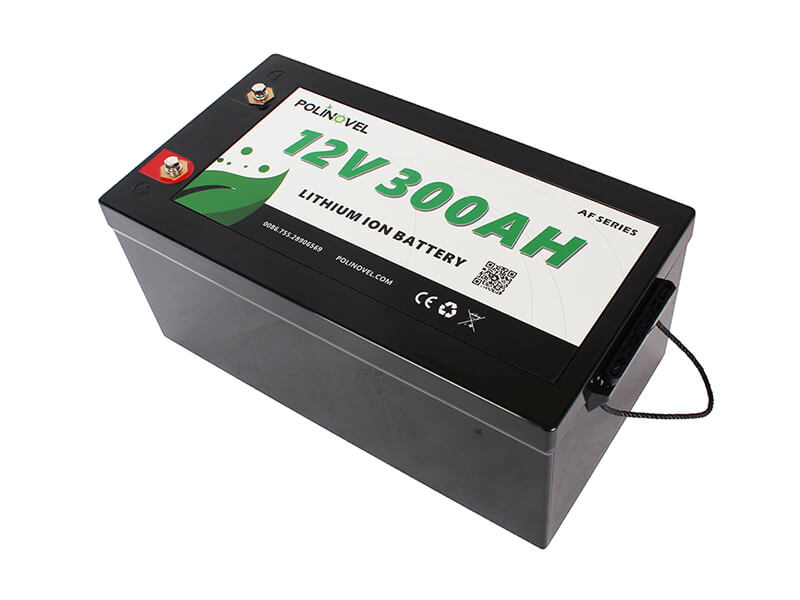

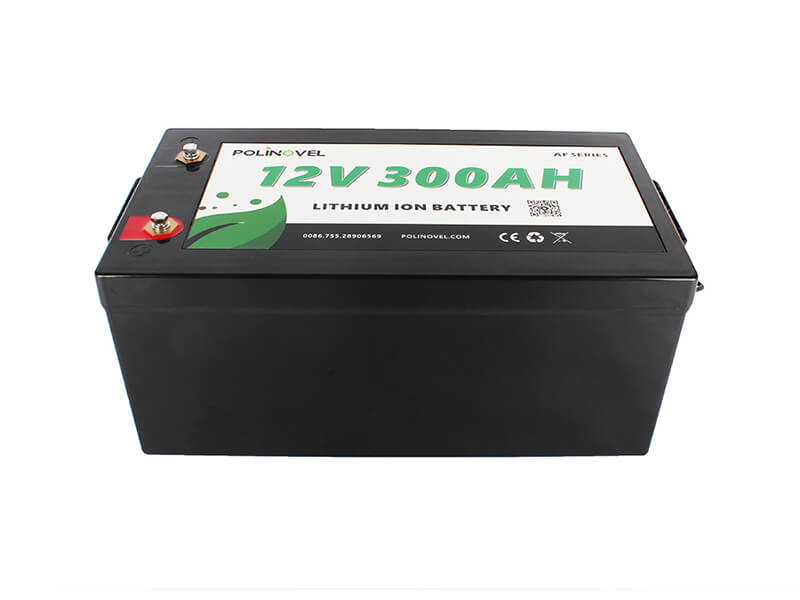

12V 300Ah LiFePO4 Battery AF12300

LiFePO4 AF12300 battery can provide powerful functions for you, such as Bluetooth monitoring and RS485/232 communication. It is widely applied in motorhomes, caravans, RVs, solar energy systems, etc.

Features

  • Advanced BMS

  • Simple connection

  • High capacity

  • IP65 waterproof

icon icon icon icon

Product Details

Model AF12300
Nominal Voltage 12.8V
Nominal Capacity 300Ah
Energy 3840Wh
Recommend Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max. Charge Current 100A
Max. Constant Discharge Current 200A
Dimension (L*W*H) mm 520*269*220
Weight 35kg
Terminal M8
Casing Material ABS
IP Rating IP65
Battery Type Lithium Iron Phosphate (LiFePO4)
Self Discharge Per Month <3%
Charge Temperature 0 to 45ºC
Discharge Temperature -20 to 60ºC
Storage Temperature 0 to 40ºC

Comprehensive Accessories For You
