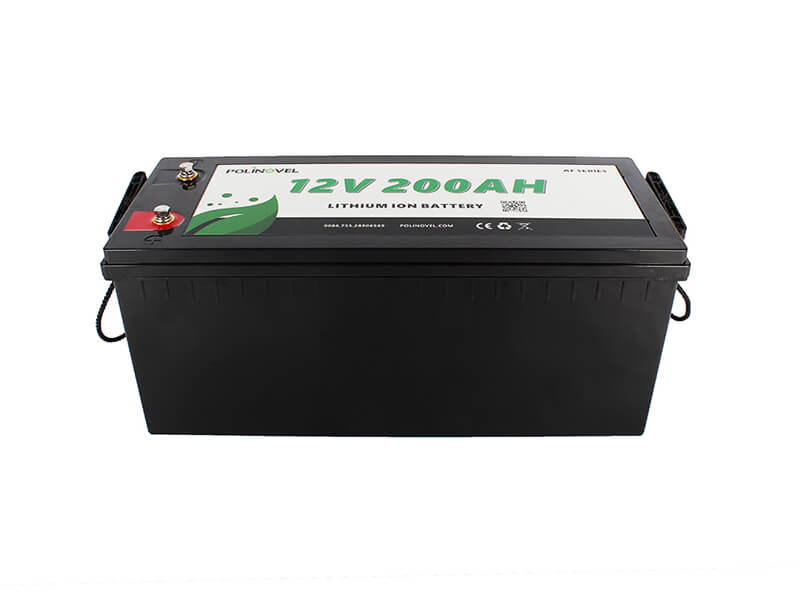

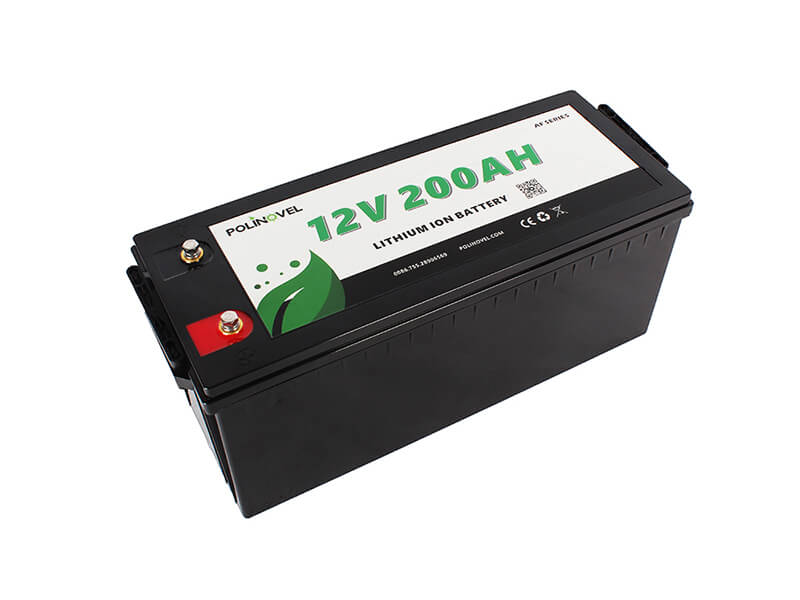

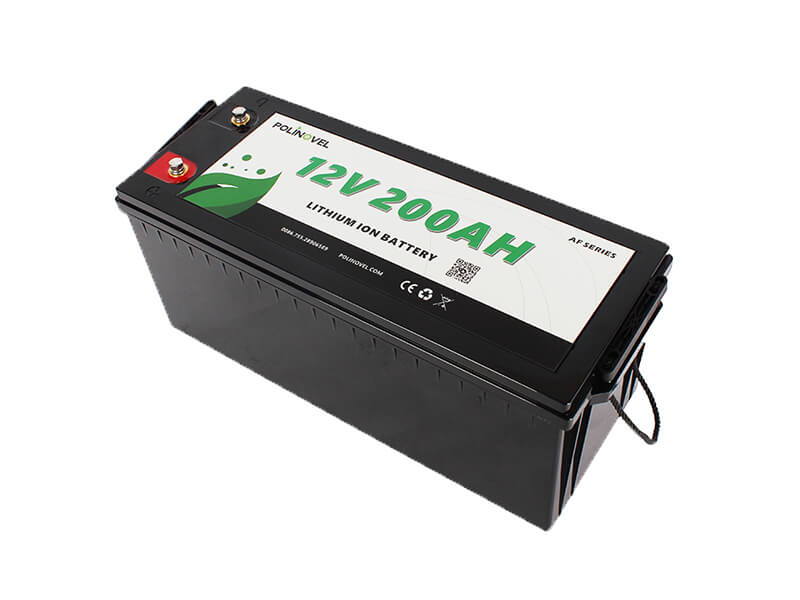

12V 200Ah LiFePO4 Battery AF12200

LiFePO4 AF12200 battery is designed with an intelligent battery management system, which is safe to use. It is ideal for use in RVs, golf carts, forklifts, solar energy systems, etc.

Features

  • Intelligent battery management system

  • High capacity

  • Simple connection

  • Wide applications

icon icon icon icon

Product Details

Model AF12200
Nominal Voltage 12.8V
Nominal Capacity 200Ah
Energy 2560Wh
Recommend Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max. Charge Current 100A
Max. Constant Discharge Current 200A
Dimension (L*W*H) mm 520*240*220
Weight 27kg
Terminal M8
Casing Material ABS
IP Rating IP65
Battery Type Lithium Iron Phosphate (LiFePO4)
Self Discharge Per Month <3%
Charge Temperature 0 to 45ºC
Discharge Temperature -20 to 60ºC
Storage Temperature 0 to 40ºC
