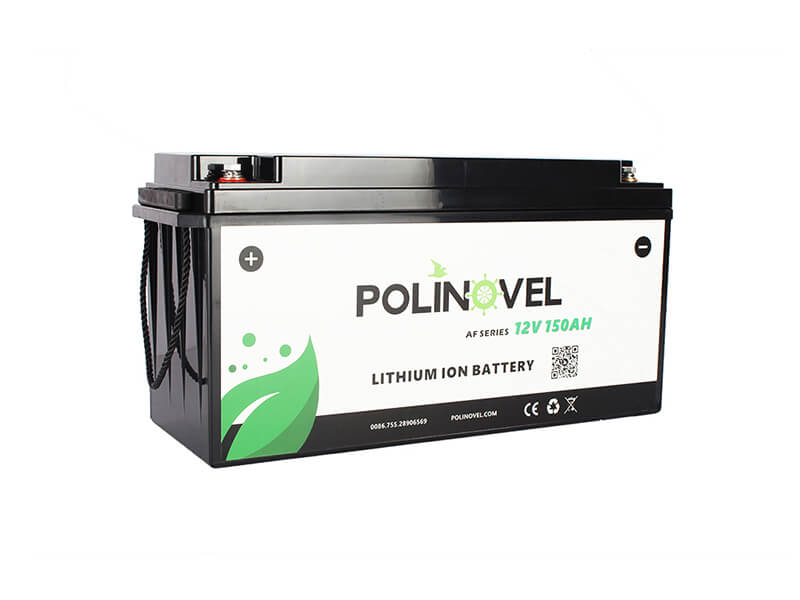

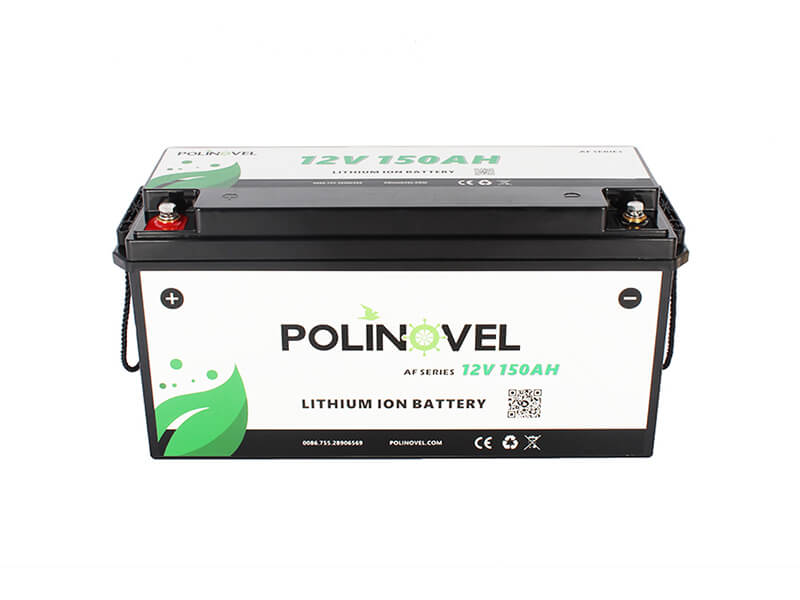

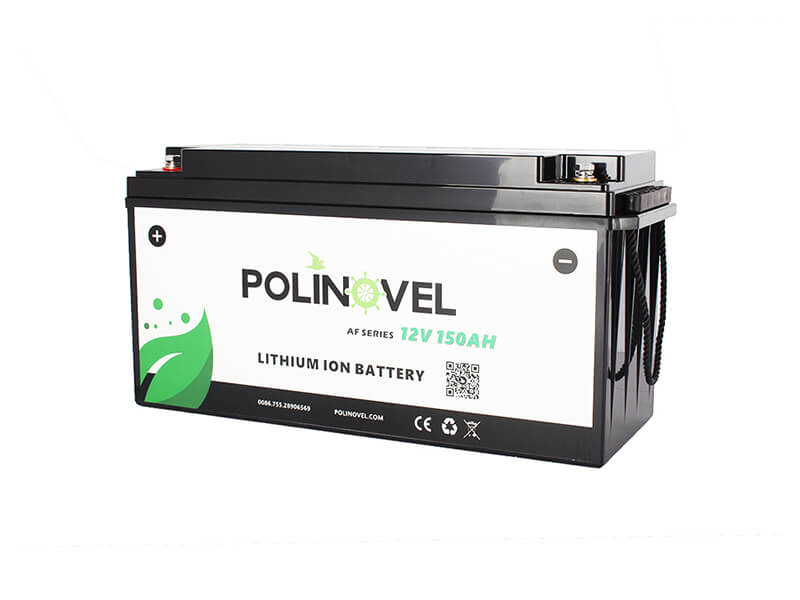

12V 150Ah LiFePO4 Battery AF12150

LiFePO4 AF12150 battery has an advanced BMS to provide overcharging, over-discharging, over current, and short circuit protection. It can be widely used in golf carts, boats, RVs, etc.

Features

  • Advanced battery management system

  • Simple connection

  • Scalable battery system

  • Wide applications

icon icon icon icon

Product Details

Model AF12150
Nominal Voltage 12.8V
Nominal Capacity 150Ah
Energy 1920Wh
Recommend Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max. Charge Current 100A
Max. Constant Discharge Current 150A
Dimension (L*W*H) mm 485*170*220
Weight 20kg
Terminal M8
Casing Material ABS
IP Rating IP65
Battery Type Lithium Iron Phosphate (LiFePO4)
Self Discharge Per Month <3%
Charge Temperature 0 to 45ºC
Discharge Temperature -20 to 60ºC
Storage Temperature 0 to 40ºC
