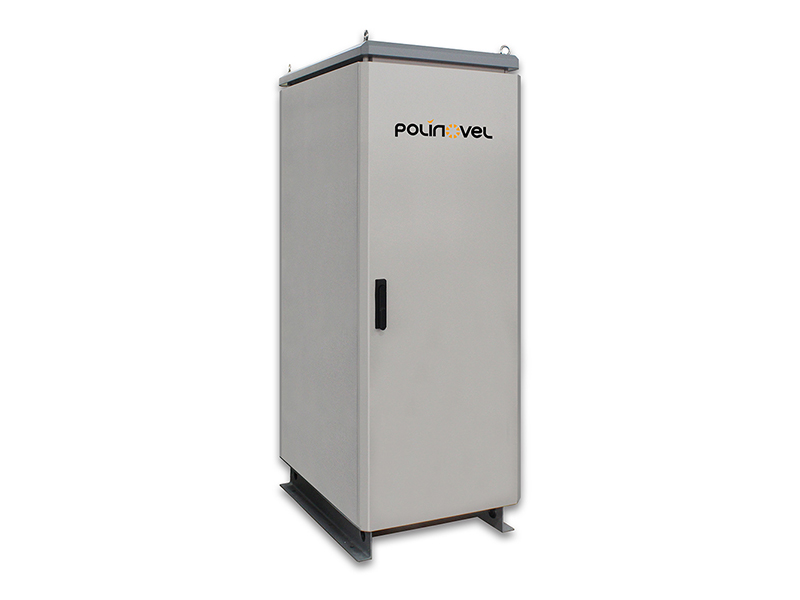

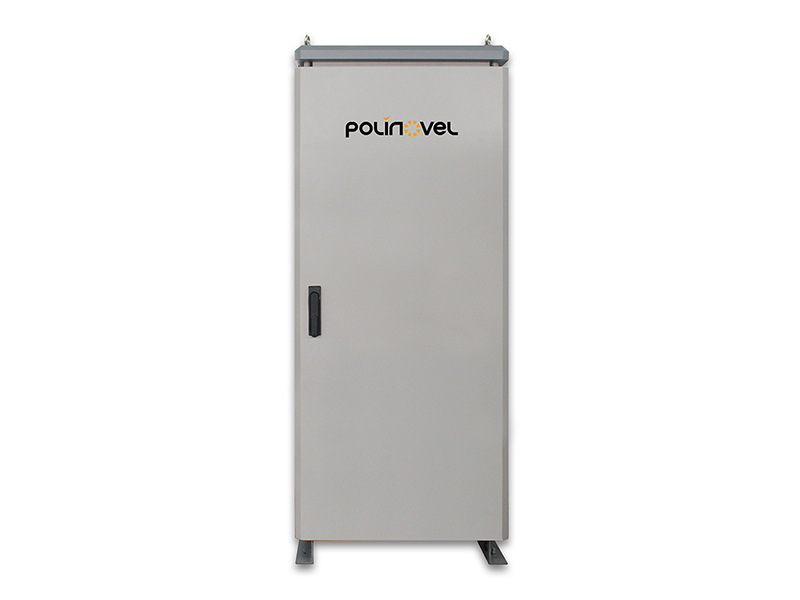

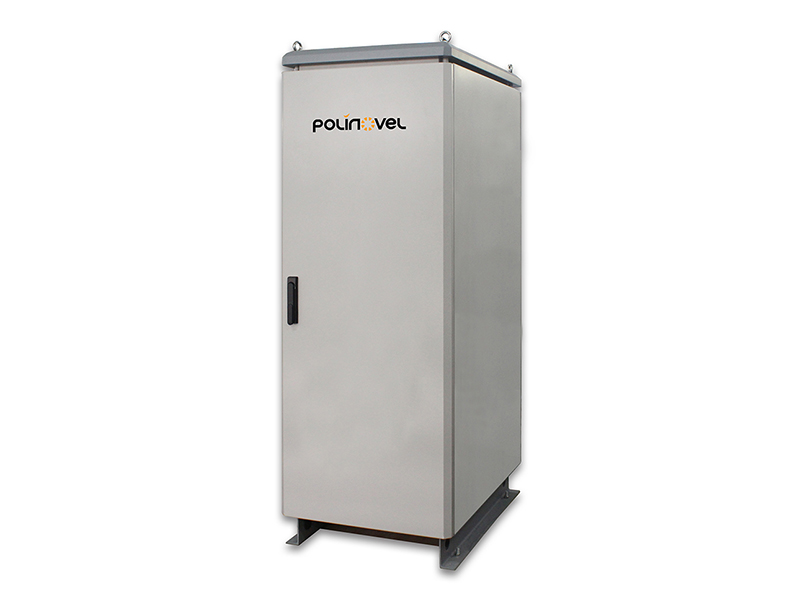

High Voltage LiFePO4 Energy Storage Battery HV Series
This HV series LiFePO4 solar battery comes in 192V, 240V, 384V, and 480V. The high-voltage battery system provides sufficient power with less discharge current, ensuring a safe operation.
Features
-
LiFePO4 battery with great safety and reliability
-
Automotive-grade technology and processes
-
Support series connection
-
Customizable communication protocols
Product Details
| Model | HV19250 | HV192100 | HV24050 | HV240100 | HV300100 | HV38450 | HV384100 | HV40050 | HV48050 | HV480100 |
| Nominal Voltage | 192V | 240V | 307V | 384V | 409.5V | 480V | ||||
| Nominal Capacity | 50Ah | 100Ah | 50Ah | 100Ah | 100Ah | 50Ah | 100Ah | 50Ah | 50Ah | 100Ah |
| Energy | 9.6kWh | 19.2kWh | 12kWh | 24kWh | 30.7kWh | 19.2kWh | 38.4kWh | 20.475kWh | 24kWh | 48kWh |
| Charge Cut-off Voltage | 218V | 200V | 346V | 435V | 461V | 545V | ||||
| Discharge Cut-off Voltage | 160V | 270V | 254V | 320V | 333V | 400V | ||||
| Standard Charge Current | 25A | 50A | 25A | 50A | 50A | 25A | 50A | 25A | 25A | 50A |
| Max. Charge Current | 50A | 100A | 50A | 100A | 100A | 50A | 100A | 50A | 50A | 100A |
| Max. Constant Discharge Current | 50A | 100A | 50A | 100A | 100A | 50A | 100A | 50A | 50A | 100A |
| Peak Discharge Current | 100A | 200A | 100A | 200A | 200A | 100A | 200A | 100A | 100A | 200A |
| Communication | RS485/CAN | |||||||||
| Dimension | 460*330*480 mm | 600*600*1600 mm | 460*330*640 mm | 1530*600*600 mm | 620*620*1420mm | 460*330*780 mm | 600*600*1600 mm | 620*620*1020mm | 600*600*1600 mm | 1200*600*1600 mm |
| (18.1*13*18.9 in) | (23.6*23.6*63 in) | (18.1*13*25.2 in) | (60.2*23.6*23.6 in) | (24.4*24.4*56 in) | (18.1*13*30.7 in) | (23.6*23.6*63 in) | (24.4*24.4*40.2 in) | (23.6*23.6*63 in) | (47.2*23.6*63 in) | |
| Weight | 100 kg (220.5 lbs) | 190 kg (418.9 lbs) | 170 kg (374.8 lbs) | 260 kg (573.2 lbs) | 326kg (718.7lbs) | 280 kg (617.3 lbs) | 500 kg (1102.3 lbs) | 231 kg (509.3 lbs) | 350 kg (771.6 lbs) | 600 kg (1322.8 lbs) |
| Charge Temperature | 0~50°C | |||||||||
| Discharge Temperature | -15~60°C | |||||||||
