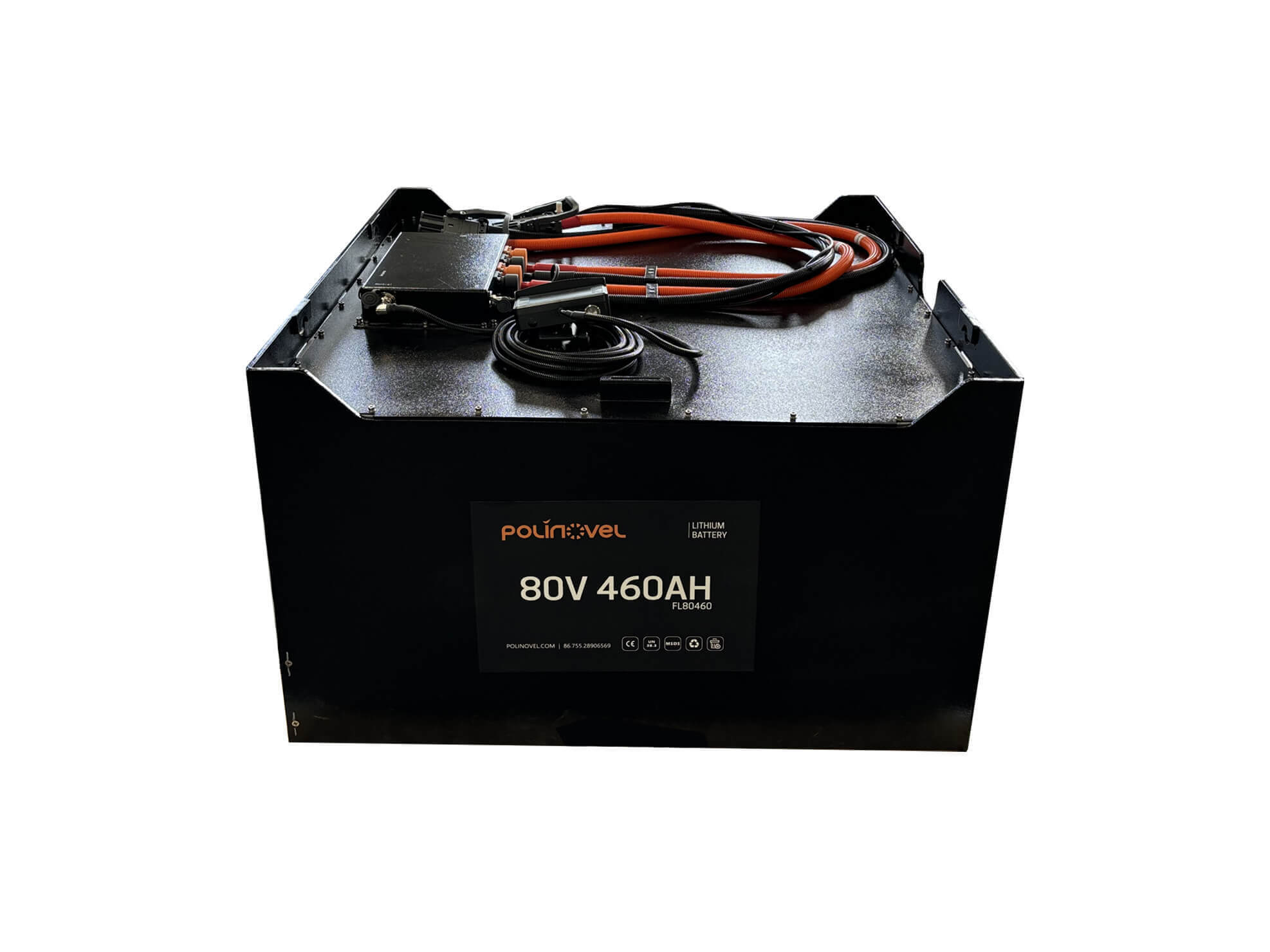

80V 460Ah LiFePO4 Forklift Battery
Polinovel 80V 460Ah lithium battery utilizes high-quality LFP cells for consistent power, fast charging efficiency, long life and zero maintenance. It is a superior battery solution for many motive power and material handling applications, such as forklifts, stackers, reach trucks, lift trucks, order pickers, tow motors, pallet jacks, AGVs and more.
Features
-
LiFePO4 battery ensures high performance and extended runtime
-
High discharge current for high efficiency
-
Intelligent BMS provides overcharge/overdischarge/overcurrent protections
-
Customizable battery size for easy installation
Parameters
| Model | FL80460 | ||
| Nominal Voltage | 80V | ||
| Nominal Capacity | 460Ah | ||
| Energy | 36800Wh | ||
| Charge Voltage | 91.25V | ||
| Discharge Cut-off Voltage | 68.75V | ||
| Charge Current | ≤200A | ||
| Constant Discharge Current | 200A | ||
| Peak Discharge Current | 460A @10s | ||
| Dimension | 1028*840*450 mm (40.5*33.1*17.7 in) | 1022*852*758 mm (40.2*33.5*29.8 in) | 1022*986*612 mm (40.2*38.8*24.1 in) |
| Weight | 370kg / 816lbs (without counterweight) | 1800kg / 3968lbs (with counterweight) | 1800kg / 3968lbs (with counterweight) |
| Cycle Life @DOD100% | ≥2000 cycles | ||
| Charge Temperature | 0~45ºC | ||
| Discharge Temperature | -20~55ºC | ||
| Storage Temperature | 20~45ºC | ||
