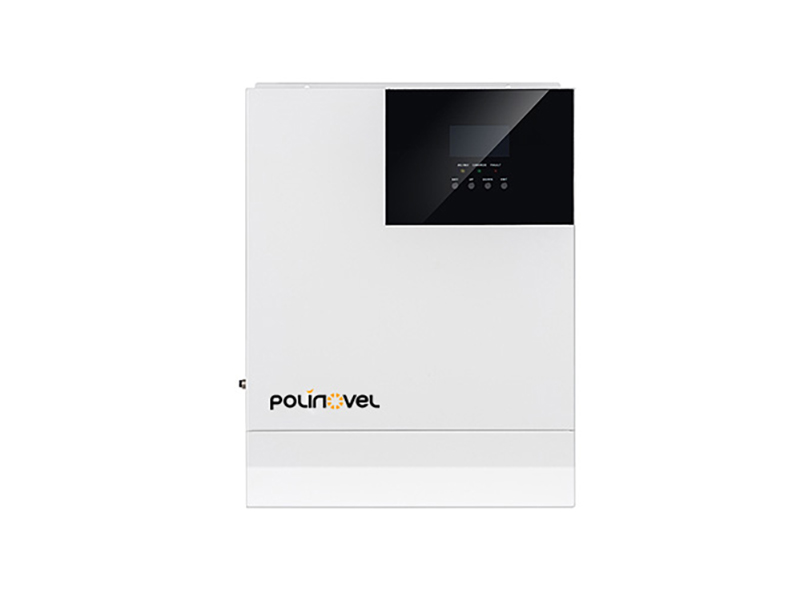

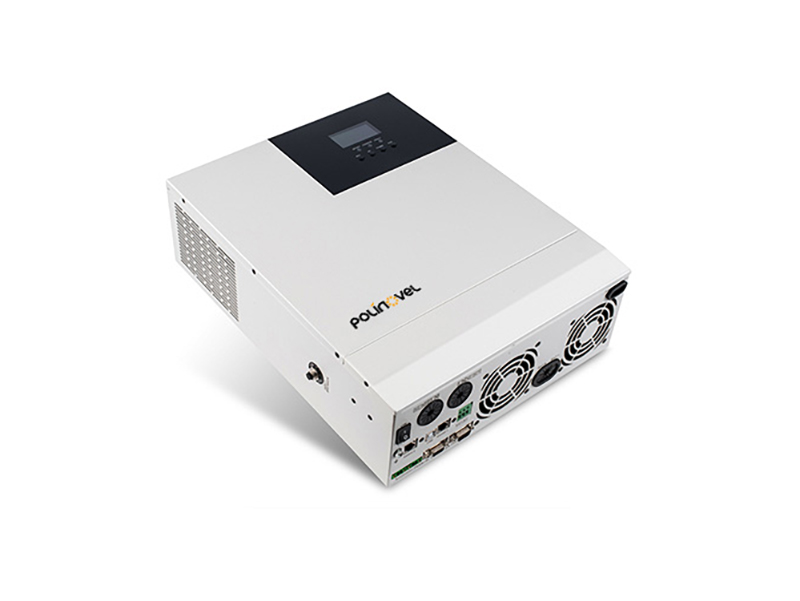

5KW Pure Sine Wave Solar Inverter HFP Series
HFP series is an all-in-one hybrid solar charge inverter integrating solar energy storage, mains charging energy storage and AC sine wave output. It adopts DSP control and advanced control algorithm, ensuring high response speed, high reliability, and high industrialization standards.
Features
-
Full digital double closed-loop control, combined with advanced SPWM technology to output pure sine wave
-
2 output modes: mains bypass and inverter output for uninterrupted power supply
-
4 charging modes: Solar Only, Mains Priority, Solar Priority, and Solar&Mains Charging
-
Various communication modules: RS485, CAN, USB, etc
-
Advanced MPPT technology ensures 99.9% efficiency
-
ON/OFF rocker switch for AC output control
-
Power saving mode available to reduce no-load loss
-
Full protection, including overload and short circuit protection, under-voltage and over-voltage protection, and reverse polarity protection
-
LCD screen and LED indicator design for real-time display of system data and operating status
-
Support 6 units parallel connection
Product Details
| Models | HFP4850S80-145 |
| AC mode | |
| Rated input voltage | 220/230Vac |
| Input voltage range | (170Vac~280Vac) ±2%；(90Vac-280Vac)±2% |
| Frequency | 50Hz/ 60Hz (Auto detection) |
| Number of parallel / split phases | 1-6 |
| Frequency Range | 47±0.3Hz ~ 55±0.3Hz (50Hz)/57±0.3Hz ~ 65±0.3Hz (60Hz); |
| Overload/short circuit protection | Circuit breaker |
| Efficiency | >95% |
| Conversion time (bypass and inverter) | 10ms (typical) |
| AC reverse protection | Available |
| Maximum bypass overload current | 40A |
| Inverter mode | |
| Output voltage waveform | Pure sine wave |
| Rated output power (VA) | 5000 |
| Rated output power (W) | 5000 |
| Power factor | 1 |
| Rated output voltage (Vac) | 230Vac |
| Output voltage error | ±5% |
| Output frequency range (Hz) | 50Hz ± 0.3Hz/60Hz ± 0.3Hz |
| Maximum Efficiency | >92% |
| Overload protection | (102% < load <125%) ±10%: report error and turn off the output after 5 minutes; (125% < load < 150%) ±10%: report error and turnoff the output after 10 seconds; Load >150% ±10%: report error and turn off the output after 5 seconds; |
| Peak power | 10000VA |
| Loaded motor capability | 3HP |
| Output short circuit protection | Circuit breaker |
| Bypass breaker specifications | 40A |
| Rated battery input voltage | 48V (Minimum starting voltage 44V) |
| Battery voltage range | Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery… settable on LCD screen |
| Power saving mode | Load ≤50W |
| AC charging | |
| Maximum charge current | 60A |
| Charge current error | ± 3Adc |
| Charge voltage range | 40 –58Vdc |
| Short circuit protection | Circuit breaker and blown fuse |
| Circuit breaker specifications | 40A |
| Overcharge protection | Alarm and turn off charging after 1 minute |
| PV charging | |
| Maximum PV open circuit voltage | 145Vdc |
| PV operating voltage range | 60-145Vdc |
| MPPT voltage range | 60-115Vdc |
| Battery voltage range | 40-60Vdc |
| Maximum PV input power | 4400W |
| Maximum PV input current | 50A |
| Maximum charger power | 4200W |
| PV charging current range (can be set) | 0-80A |
| Charging short circuit protection | Blown fuse |
| Wiring protection | Reverse polarity protection |
| Certified specifications | |
| Certification | CE(IEC 62109-1) |
| EMC certification level | EN61000, C2 |
| Operating temperature range | -15°C to 55°C |
| Storage temperature range | -25°C to 60°C |
| Humidity range | 5% to 95% (Conformal coating protection) |
| Noise | ≤60dB |
| Heat dissipation | Forced air cooling, variable speed of fan |
| Communication interface | USB/RS485(WiFi/GPRS)/Dry node control |
| Size (L*W*D) | 426*322*124 mm (16.8*12.7*4.9 in) |
| Weight | 10.8 kg (24 lbs) |
