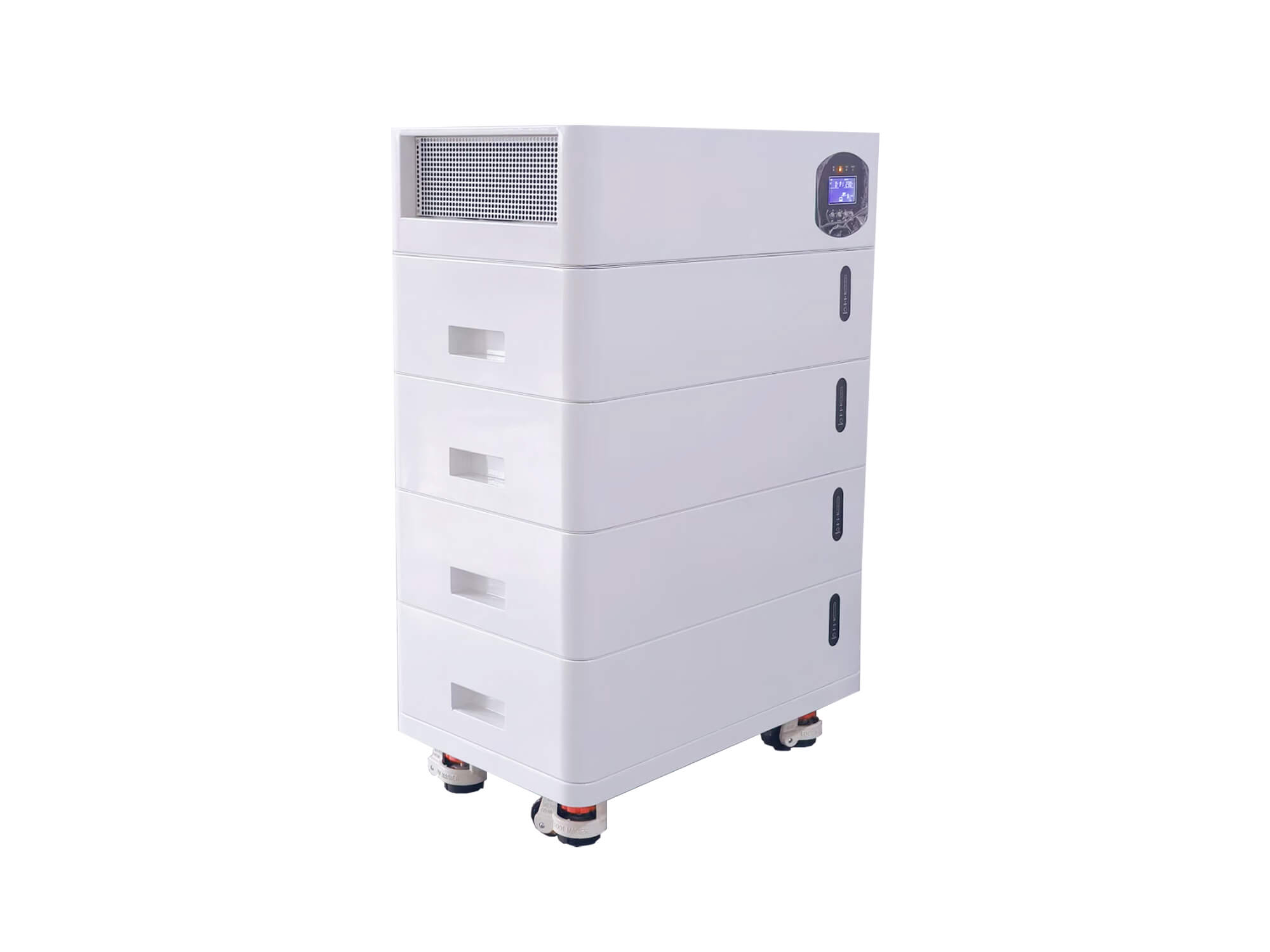

48V All In One Lithium Home Battery with Inverter
Polinovel ONE Series lithium battery integrates 48V battery packs and a 5KW inverter together, reducing the matching process and shortening the installation time.
Features
-
Plug-in & cable-less design
-
Built-in 5KW solar inverter
-
15 protections for added security
-
Integrated UPS
-
Modular design for easy power expansion
Product Details
| Model | ONE5 | ONE10 | ONE15 |
| Battery Module | |||
| Nominal Voltage | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100Ah | 200Ah | 300Ah |
| Energy | 5.12kWh | 10.24kWh | 15.36kWh |
| Charge Cut-off Voltage | 58V | 58V | 58V |
| Discharge Cut-off Voltage | 42V | 42V | 42V |
| Standard Charge Current | 50A | 50A | 50A |
| Max. Charge Current | 100A | 100A | 100A |
| Max. Constant Discharge Current | 100A | 100A | 100A |
| Peak Discharge Current | 200A | 200A | 200A |
| Communication | RS485/CAN | RS485/CAN | RS485/CAN |
| Hybrid Inverter | |||
| Power | 5KW | 5KW | 5KW |
| Output Voltage | 230VAC | 230VAC | 230VAC |
| Frequency | 50Hz | 50Hz | 50Hz |
| Input Power (PV) | 7KW | 7KW | 7KW |
| Input Voltage Range (PV) | 150-500VDC | 150-500VDC | 150-500VDC |
| Communication Connect Port | RS485/CAN | RS485/CAN | RS485/CAN |
| System Information | |||
| Material | Metal | Metal | Metal |
| Dimension | 410*230*1070 mm (16.1*9.1*42.1 in) | 410*230*1430 mm (16.1*9.1*56.3 in) | 410*230*1790 mm (16.1*9.1*70.5 in) |
| Weight | 70 kg (154 lbs) | 115 kg (253.5 lbs) | 160 kg (352.7 lbs) |
| Charge Temperature | 0~50 °C | 0~50 °C | 0~50 °C |
| Discharge Temperature | -15~ 60°C | -15~ 60°C | -15~ 60°C |
Wide Range Of Applications
