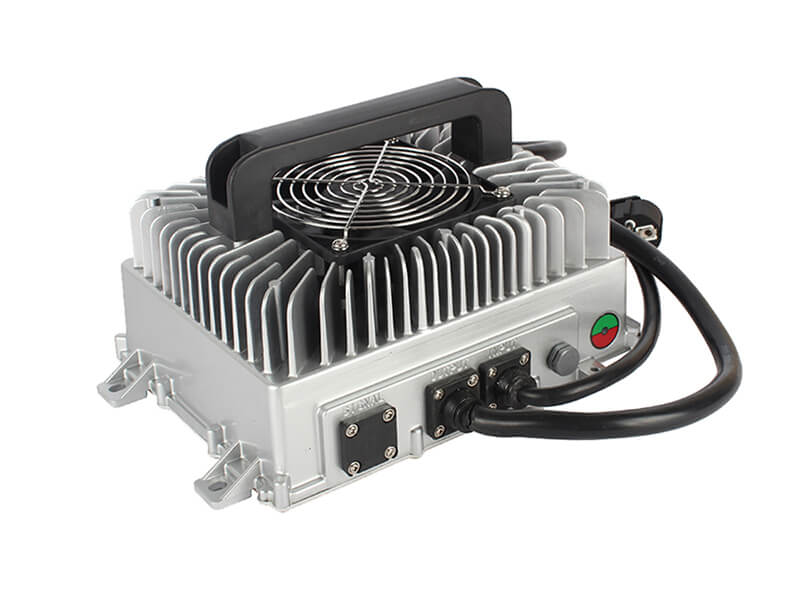

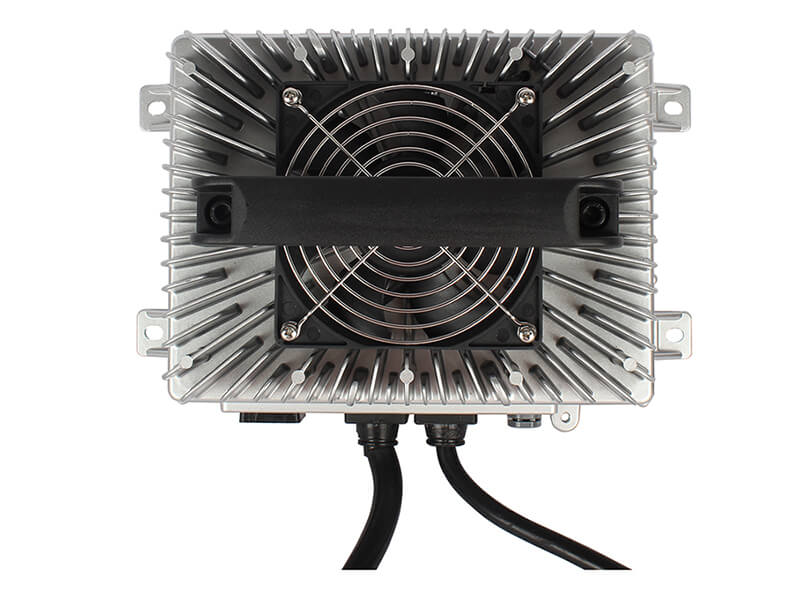

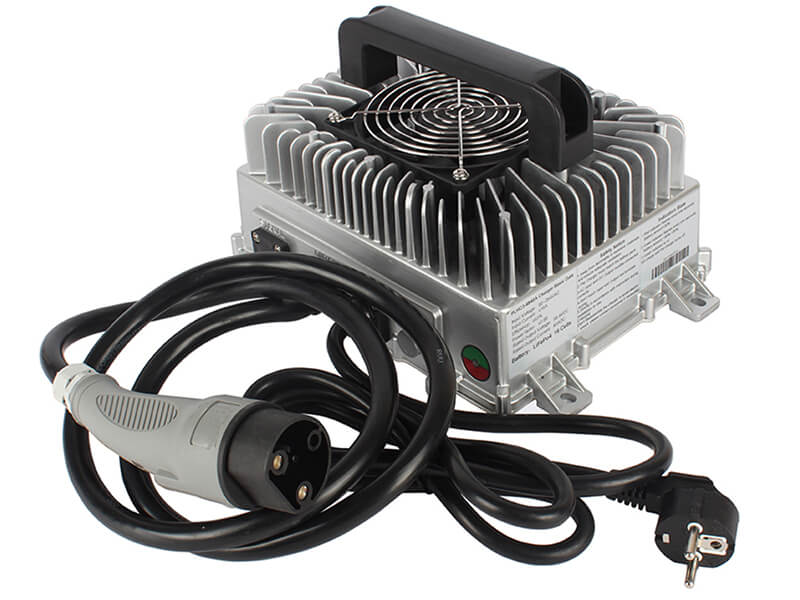

3300W Lithium Battery Charger LBC3300
This LBC3300 lithium battery charger has a long lifespan, high efficiency, and good durability. It can be widely used in golf carts, electric vehicles, and boats that are powered by LiFePO4 batteries.
Features
-
IP67 waterproof standard
-
Strong protection function
-
Soft switching technology
-
Good heat dissipation
Product Details
| Specification | LBC3300 |
| Manufacturer | Polinovel |
| Model | PLHC3-4840A |
| Rated Output Voltage | 58.4VAC |
| Rated Output Current | 40A |
| Max. Output Power | 3300W |
| Input Voltage Range | 90-264VAC |
| Input Frequency Range | 40-70Hz |
| Input Current | ≤16A |
| Efficiency | ≥93% |
| Power Factor | ≥0.98 |
| Applicable Battery | 48V, 16S, LiFePO4 |
| Shell Material | Aluminum |
| Protection Level | IP67 |
| Operating Temperature | -40℃~60℃ |
| Storage Temperature | -55℃~100℃ |
| Noise | ≤45dB |
| LED Light Indicator For Charging Process | Standard |
| Dimension (LxWxH) | 294*210*111 mm (11.6*8.3*4.4 in) |
| Weight | 5.9 kg (13 lbs) |
