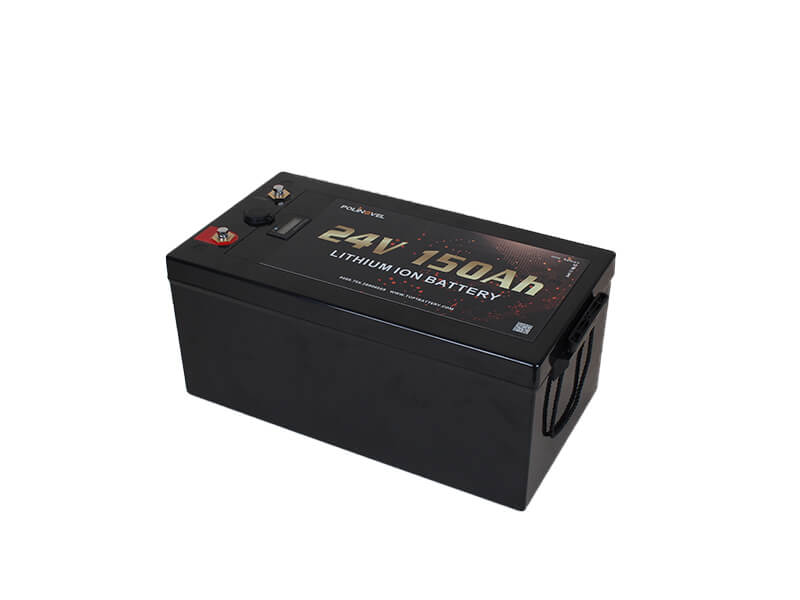

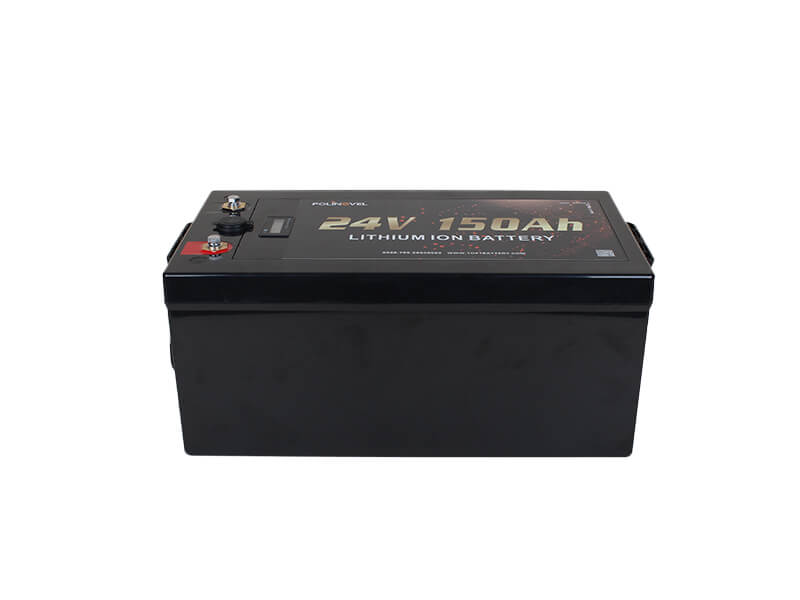

24V 150Ah HDN LiFePO4 Battery HDN24150

This HDN24150 lithium battery has “BMS + Safe Board” dual protection. It is safe to use in kayaks, ships, and other scenarios.

Features

  • High capacity

  • “BMS + Safe Board” dual protection

  • Supports series or parallel connection

  • Vibration-resistant and corrosion-resistant

icon icon icon icon

Product Details

Model HDN24150
Nominal Voltage 25.6V
Nominal Capacity 150Ah
Energy 3840Wh
Recommend Charge Voltage 28.4V – 29.2V
Discharge Cut-off Voltage 16V (2.0±0.05vpc, 120~180ms)
Max. Charge Current 100A
Max. Constant Discharge Current 100A
Dimension (L*W*H) mm 520*269*220
Weight 38kg
Terminal M8
Casing Material ABS
IP Rating IP65
Battery Type Lithium Iron Phosphate (LiFePO4)
Self Discharge Per Month <3%
Charge Temperature 0 to 45ºC
Discharge Temperature -20 to 60ºC
Storage Temperature (1 month) -20 to 60 ºC
Storage Temperature (3 months) -20 to 45 ºC
Storage Temperature (6 months) -20 to 25 ºC
