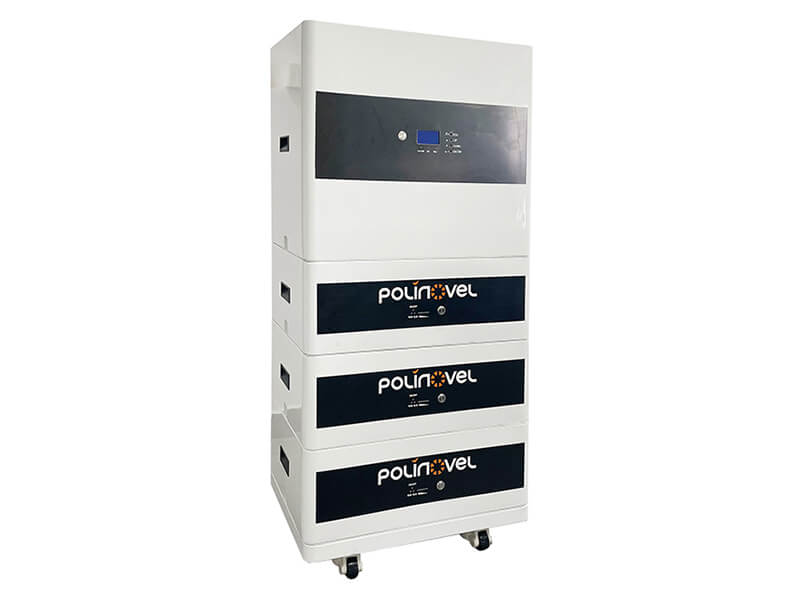

15kWh LiFePO4 Energy Storage Battery BESS300
This LFP energy storage battery has many advantages, such as providing WiFi/GPRS remote monitoring on phone and supporting multiple batteries in parallel connection. It aims to give you a better user experience.
Features
-
Stackable modular design
-
Intelligent BMS
-
Up to 15 batteries in parallel connection
-
Easy installation
Product Details
| Model | BESS300 | |||
| Energy | 15.36kWh | |||
| Nominal Capacity | 300Ah | |||
| Nominal Voltage | 51.2V | |||
| Battery Type | Lithium Iron Phosphate (LiFePO4) | |||
| Operating Voltage | 44.8V ~ 54.75V | |||
| Charge Current | Standard 50A, Max. 100A | |||
| Max. Constant Discharge Current | 100A | |||
| Peak Discharge Current | 150A @ 1s | |||
| BMS | Yes (intelligent protection BMS per module) | |||
| Solar Inverter Parameter | ||||
| Rated Output Power | 5KVA / 5KW | |||
| Peak Power (Output) | 10KVA | |||
| Wave Form | Pure Sine Wave | |||
| AC Output | 230Vac, 50/60Hz | |||
| Solar Charger (MPPT) Parameter | ||||
| Max. PV Array Power | 4.5KW | |||
| MPPT Operating Voltage Range | 60Vdc – 115Vdc | |||
| Max. PV Array Open Circuit Voltage | 145Vdc | |||
| Max. Solar Charge Current | 60A | |||
| Max. Efficiency | 98% | |||
| AC Charger Parameter | ||||
| Max. AC Charge Current | 60A | |||
| AC Input Voltage Frequency | 230Vac, 50/60Hz (auto sensing) | |||
| Selectable Voltage Range | 170~280Vac | |||
| General Parameter | ||||
| Dimension (L*W*H) mm | 620*390*1331 | |||
| Net Weight | 170kg | |||
| Charge Temperature | 0℃ ~ 45℃ | |||
| Discharge Temperature | -20℃ ~ 60℃ | |||
| Storage Temperature | 0℃ ~ 40℃ | |||
| IP Rating | IP54 | |||
| Communication | WiFi/GPRS (Optional) | |||
| Warranty | Standard 5 years (10 years optional) | |||
Wide Range Of Applications
