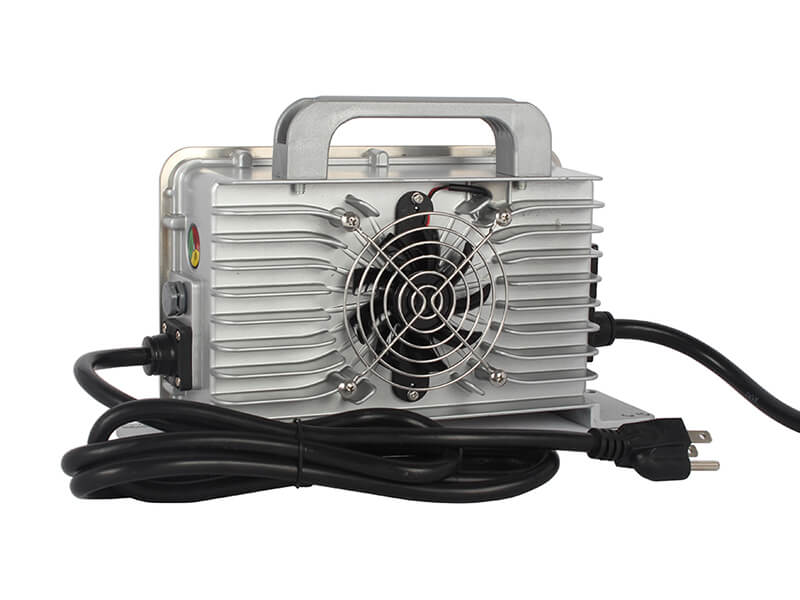

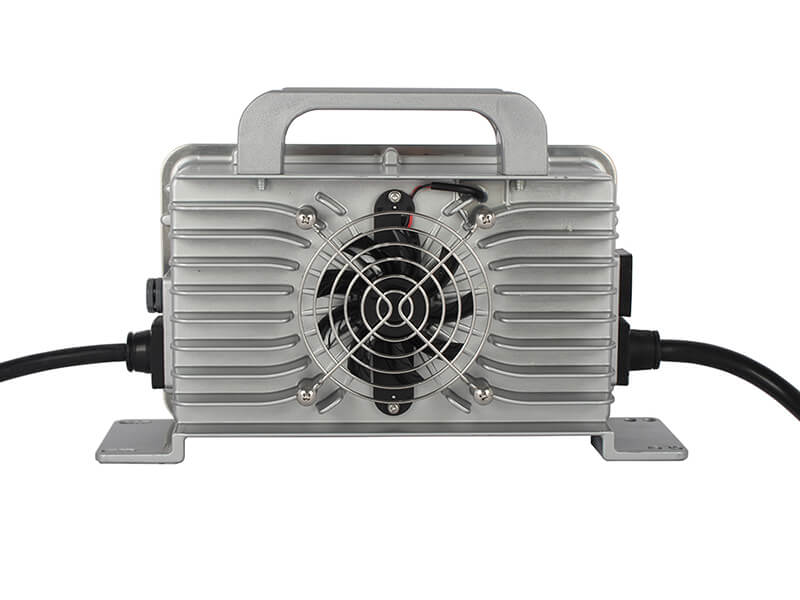

1500W Lithium Battery Charger LBC1500
This LBC1500 lithium battery charger has a wide working temperature range and good vibration resistance performance. It can be widely used for golf carts, electric vehicles, forklifts, etc.
Features
-
High efficiency
-
APFC function
-
Soft switching technology
-
Wide working temperature range
Product Details
| Specification | LBC1500 |
| Manufacturer | Polinovel |
| Model | PLCZ1-4820C |
| Rated Output Voltage | 58.4VDC |
| Rated Output Current | 20A |
| Max. Output Power | 1500W |
| Input Voltage Range | 90-264VAC |
| Input Frequency Range | 40-70Hz |
| Input Current | ≤11A |
| Efficiency | ≥93% |
| Power Factor | ≥0.98 |
| Applicable Battery | 48V, 16S, LiFePO4 |
| Shell Material | Aluminum |
| Protection Level | IP67 |
| Operating Temperature | -40℃~60℃ |
| Storage Temperature | -55℃~100℃ |
| Noise | ≤45dB |
| LED Light Indicator For Charging Process | Standard |
| Dimension (LxWxH) | 282*146*82 mm (11.1*5.7*3.2 in) |
| Weight | 2.7 kg (6 lbs) |
