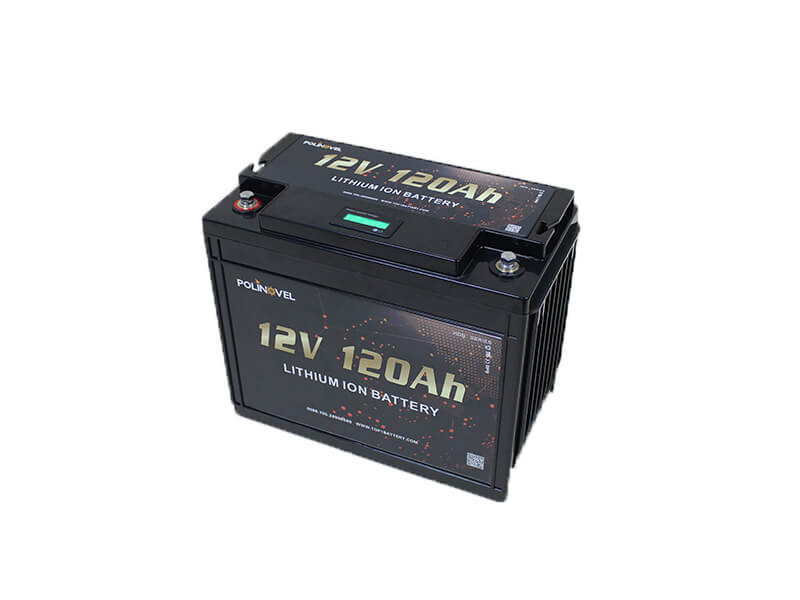

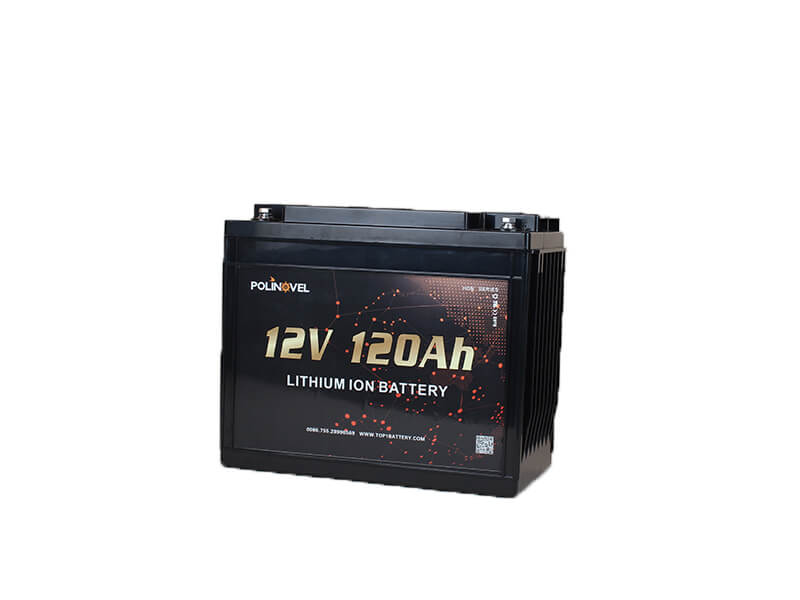

12V 120Ah HDN Lithium Battery HDN12120

This HDN12120 lithium battery has an LCD indicator. You can check the voltage and SOC conveniently. It will be your good helper in trolling motors, motorhomes, boats, etc.

Features

  • "BMS + Safe Board" dual protection

  • Supports series or parallel connection

  • Patented screw fastening structure

  • LCD displaying function

icon icon icon icon

Product Details

Model HDN12120
Nominal Voltage 12.8V
Nominal Capacity 120Ah
Energy 1536Wh
Recommend Charge Voltage 14.6V
Discharge Cut-off Voltage 10V
Max. Charge Current 100A
Max. Constant Discharge Current 150A
Dimension (L*W*H) mm 329*172*214
Weight 15kg
Terminal M8
Casing Material ABS
IP Rating IP65
Battery Type Lithium Iron Phosphate (LiFePO4)
Self Discharge Per Month <3%
Charge Temperature 0 to 45ºC
Discharge Temperature -20 to 60ºC
Storage Temperature (1 month) -20 to 60 ºC
Storage Temperature (3 months) -20 to 45 ºC
Storage Temperature (6 months) -20 to 25 ºC
