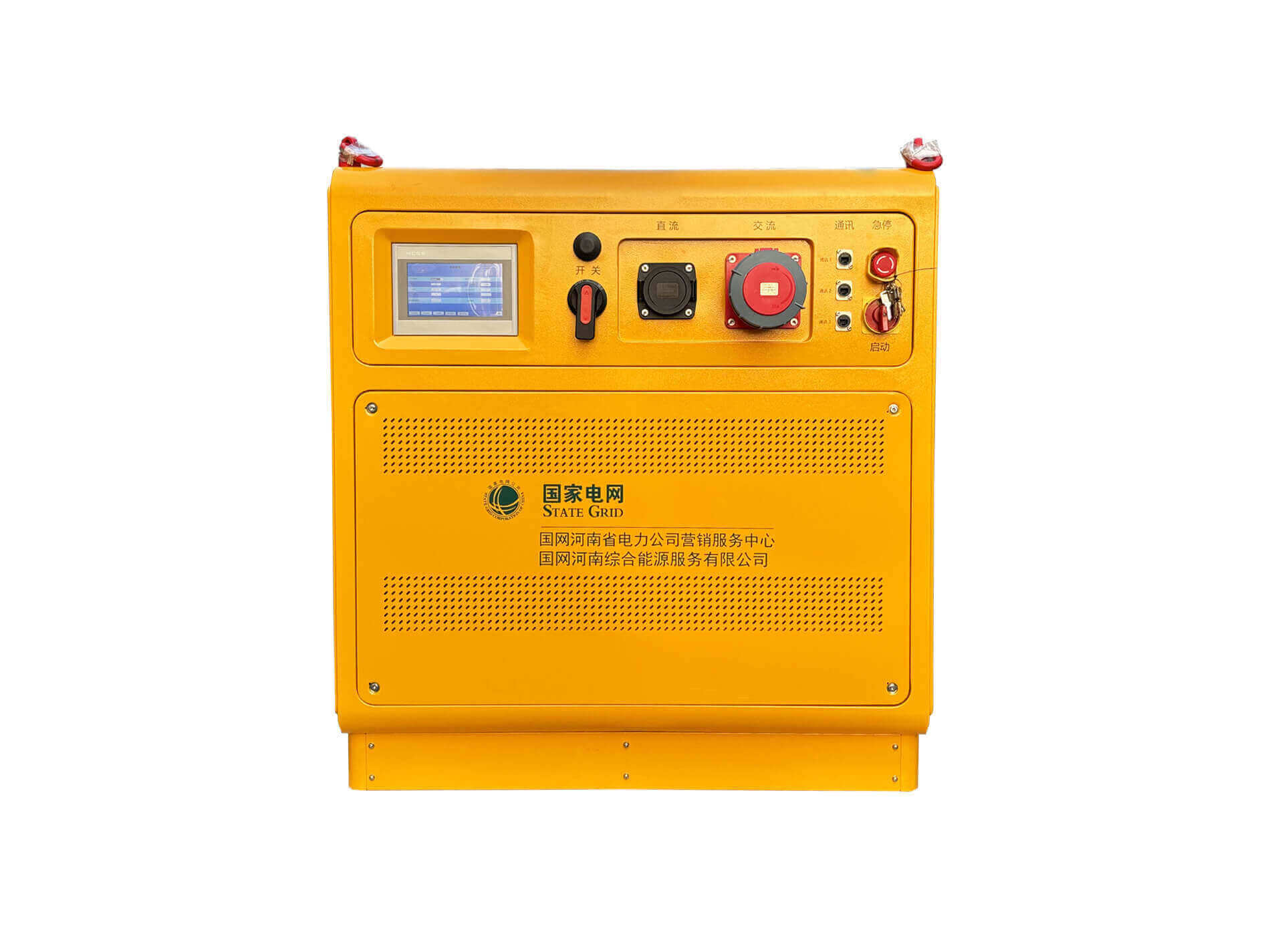

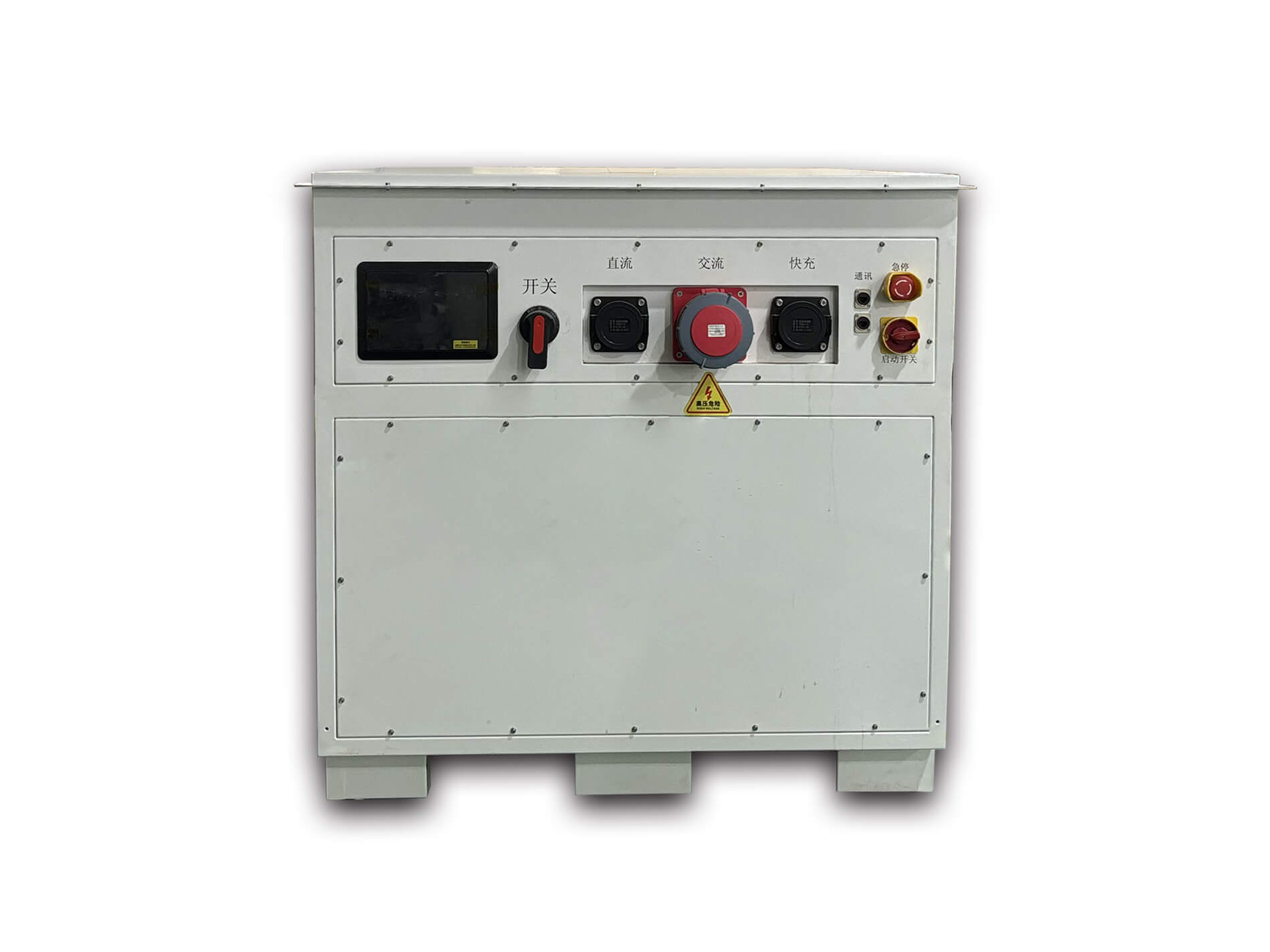

100KWH Mobile Battery Energy Storage System
This Mobile Battery Energy Storage System is used for emergency power supply, temporary outdoor power supply, power supply for industrial and commercial users, temporary power supply in important places, etc. It can be installed on vehicles to achieve fast mobile power supply.
Features
-
Premium LiFePO4 chemistry with good consistency
-
Automotive-grade manufacturing process for high safety and reliability
-
Custom solution to meet specific needs
Product Details
| Model | MBS100 | |
| Battery Parameter | ||
| Cell | Rated capacity | 130ah |
| Rated voltage | 3.2v | |
| Voltage range | 2.5-3.65v | |
| Cell quantity | 240pcs | |
| Module | Cell series and parallel connection | 1P30S |
| Rated voltage | 96v | |
| Voltage range | 75-109.5v | |
| Module quantity | 8 | |
| Cabinet | Cell series and parallel connection | 1P240S |
| Rated voltage | 768v | |
| Voltage range | 600-876v | |
| Energy storage | 99.84kwh | |
| System Parameter | ||
| System | DC voltage range | 600-876v |
| Output voltage | 380vac | |
| Rated power | 50kw | |
| PCS | 50kw | |
| Rated energy | 99.84kwh | |
| Size (L*W*H) | 1220*1045*1000mm | |
| Weight | Around 940kg | |
Wide Range Of Applications
