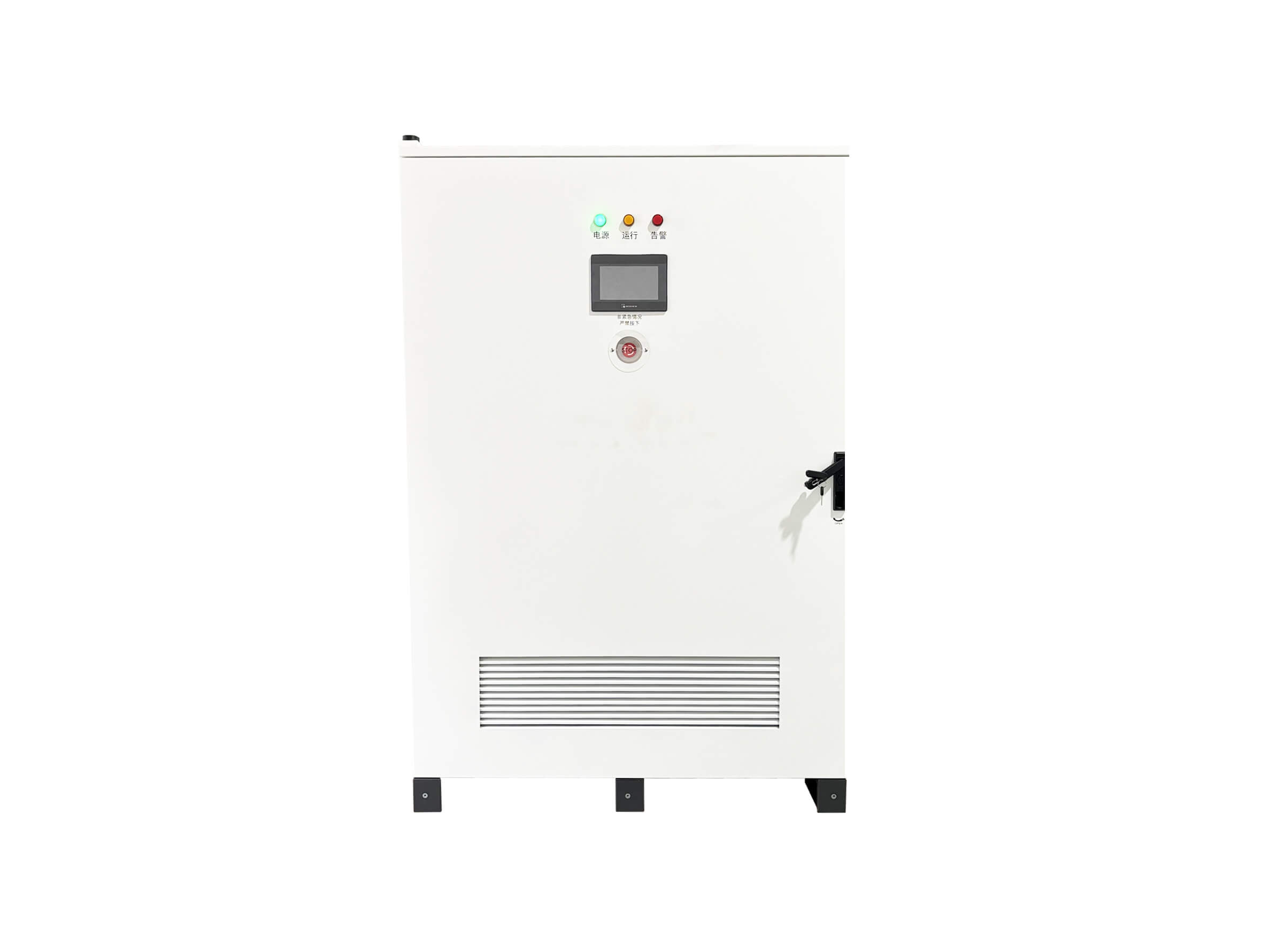

100kWh 200kWh Commercial Solar Energy Storage Battery System
Polinovel CESS Series commercial energy storage system (ESS) is tailored for high capacity power storage, ideal for large-scale renewable energy generation, PV self-consumption, off-grid applications, peak shaving, and emergency backup power.
Features
-
Premium LiFePO4 chemistry with good consistency
-
Modular system to flexibly match various industrial and commercial scenarios
-
Parallel connections enable capacity expansion
-
Efficient thermal management design to ensure safety and reliability
-
Built-in EMS supports multiple operating modes
-
Seamless switching to power supply by converter
Parameters
| Model | CBS107 | CBS180 | CBS197 | CBS215 |
| Energy | 107.52KWH | 179.20KWH | 197.12KWH | 215.04KWH |
| Rated Voltage | 384V | 640V | 704V | 768V |
| Rated Capacity | 280Ah | 280Ah | 280Ah | 280Ah |
| Combination Mode | 120S1P | 200S1P | 220S1P | 240S1P |
| Voltage Range | 350~425V | 580~710V | 640~770V | 695V~840V |
| Max. Charge Current | 0.5C | 0.5C | 0.5C | 0.5C |
| Max. Continuous Discharge Current | 1C | 1C | 1C | 1C |
| Dimension | 1200*1355*2150mm / 47.2*53.4*84.7in | 1850*1355*2150mm / 72.8*53.4*84.7in | ||
| Weight | 820kg / 1807.8lbs | 1350kg / 2976.2lbs | 1500kg / 3306.9lbs | 1650kg / 3637.6lbs |
| Cycle Life | ≥6000 cycles @ 25℃ 80% DOD | |||
| Communication | RS485 / CAN | |||
| Rated AC Output Power | 50KW | 100KW | 100KW | 100KW |
| Max. AC Current | 72A | 140A | 140A | 140A |
| Rated AC Voltage | 400V (3W+N+PE/3W+PE) | |||
| AC Voltage Range | 154V~276V | |||
| Rated Grid Frequency | 50Hz/60Hz | |||
| Grid Type | Three Phase | |||
| IP Rating | IP54 | |||
| Display | Touch Screen LCD | |||
| Cooling Mode | Forced-air | |||
| Noise Emission | ≤70dB | |||
| Ambient Temperature | -20℃~55℃ (derating above 45℃) | |||
| Relative Humidity | 0~95%（non-condensing) | |||
| Altitude | 3000m (derating above 2000m) | |||
